Pneutorque operation is quiet with less impacting, makes it comfortable for the operator. The torque control is achieved by adjustment of the air pressure.
An air pressure vs. torque graph and a calibration certificate is included with each tool and allows specific torque values to be set.
Pistol and straight types are available for this models with torque range from 100 - 300.000 Nm.
Some of popular models below.
Pistol-type
180241.B06
Square drive : 3/4"Torque : 100 - 500 Nm.
Speed : 35,5 rpm.
Weight : 5,1 Kg.
18141.B08
Square drive : 1"Torque : 400 - 2000 Nm.
Speed : 58 rpm.
Weight : 7,7 Kg.
18109.B12
Square drive : 1,5"Torque : 1200 - 6000 Nm.
Speed : 15,5 rpm.
Weight : 15,5 Kg.
Straight-type
180279.B12
Remote operationalSquare drive : 1,5"
Torque : 1400 - 7000 Nm.
Speed : 2 rpm.
Weight : 12,4 Kg.
16066.AUT
Square drive : 1,5"Torque : 2200 – 6000 Nm.
Auto 2-speed
Speed : 12,5 rpm.
Weight : 29,5 Kg.

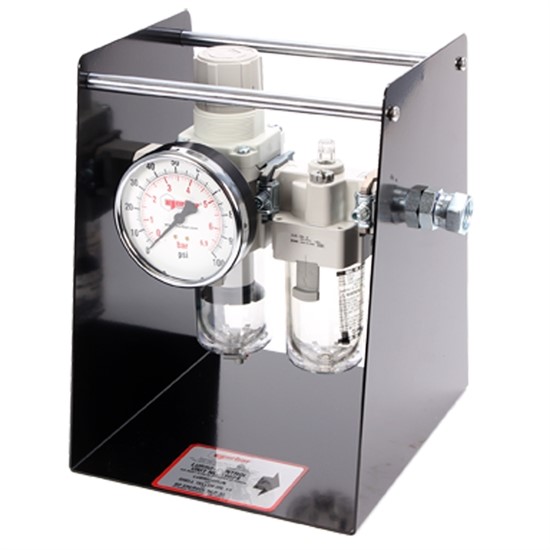

Control Unit
16074
FRL LubroWeight : 7,5 Kg.
For more information, please contact us
